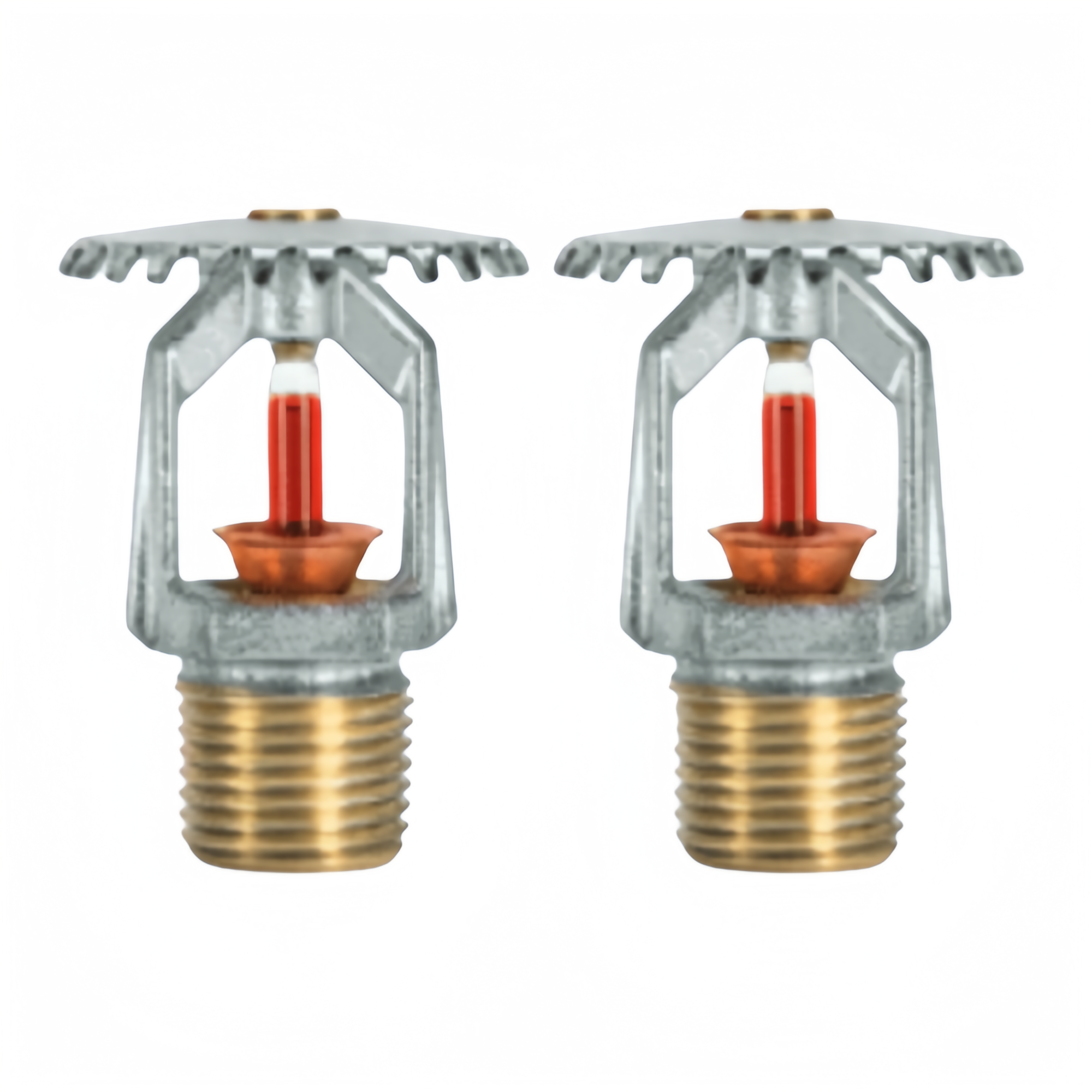

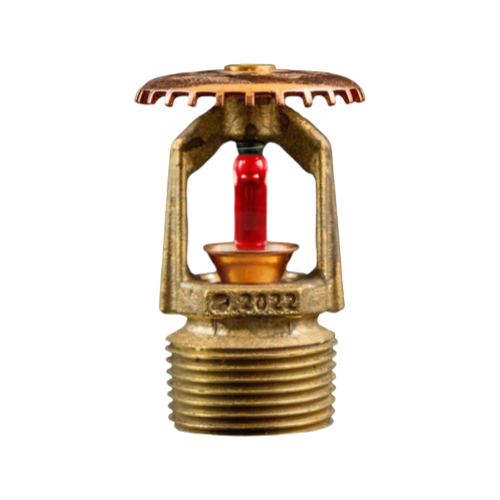

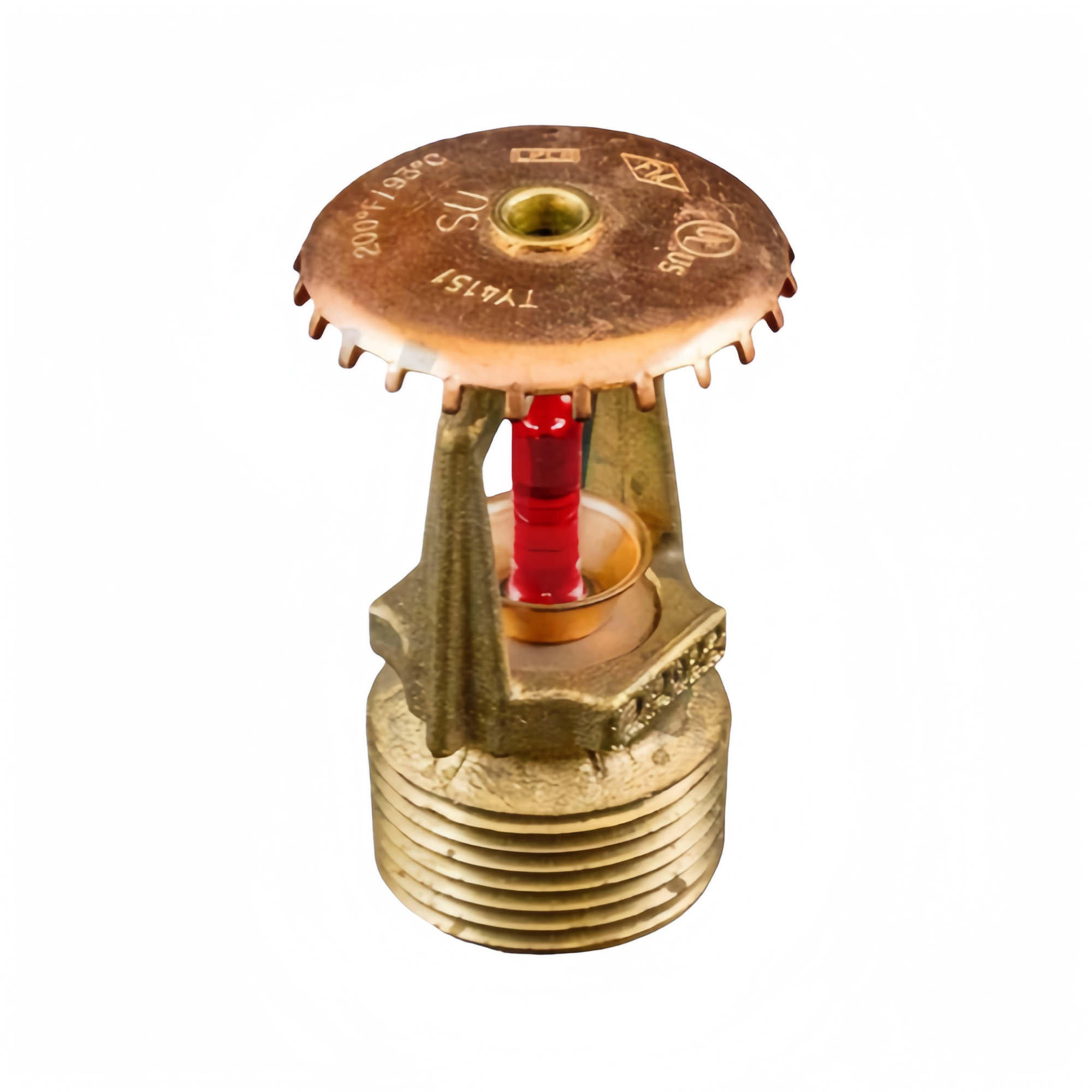

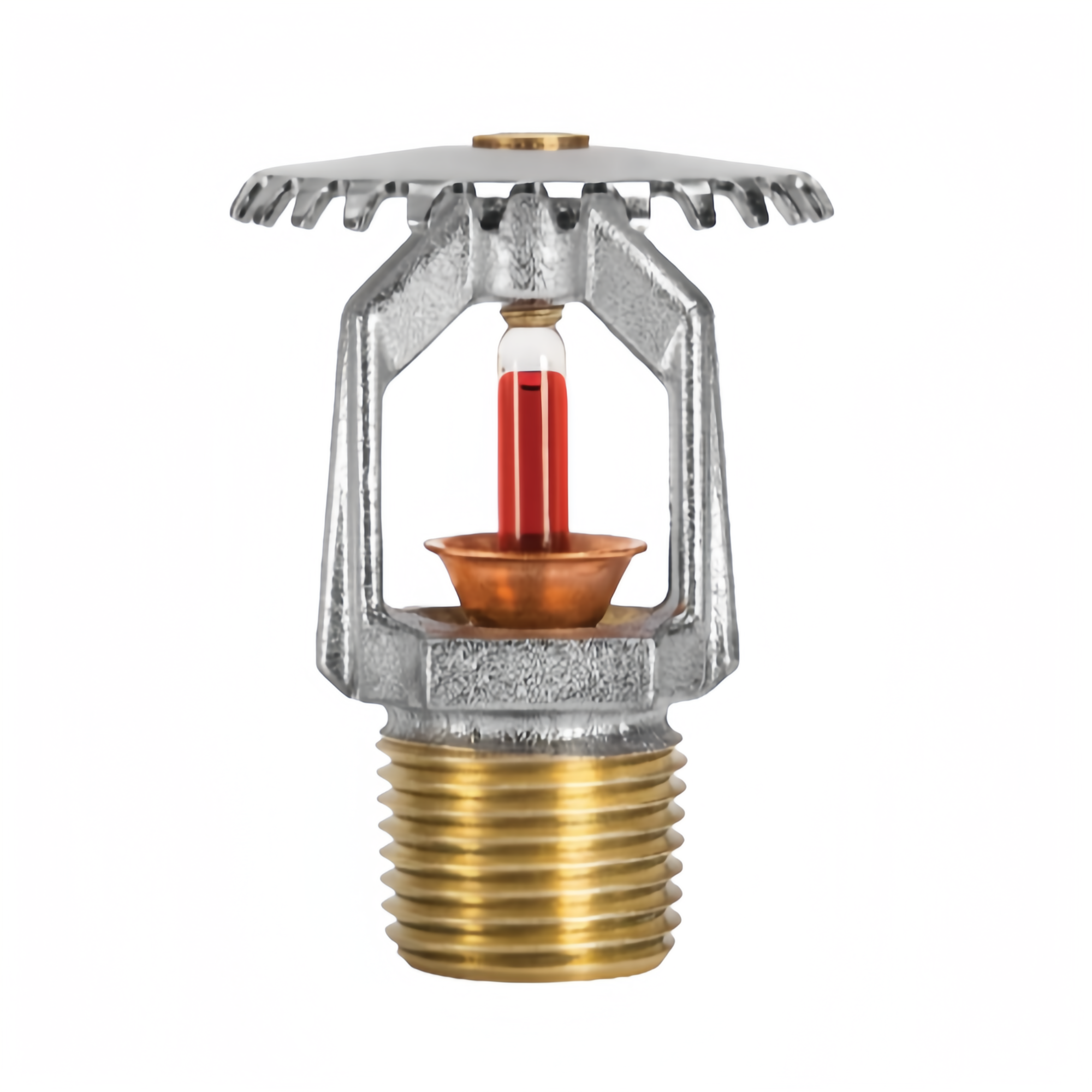

TY4151 is a vertical fire sprinkler head. Adopting the classic glass bulb temperature-sensing start-up principle, it is mainly applied to fire protection in commercial buildings and other places.
喷头材质 :
Brass，Copper洒水装置安装 :
Uright，Pendent螺纹尺寸 :
1/2 Inch 3/4 Inch温度 :
155℉(68 ℃ )，175℉ (79 ℃ )，200℉(93 ℃ )玻璃灯泡颜色 :
Red，Yellow，Green表面处理 :
Natural Brass最小起订量 :
15~30 Days交货时间 :
1000 Pieces电子邮件 : jony@jyfire.com.cn
Product Introduction
Under normal circumstances, the glass bulb inside the nozzle will press against the seal, keeping the water sealed in the pipe network.
When a fire causes the ambient temperature to rise to the rated operating temperature (such as 68℃), the pressure generated by the thermal expansion of the liquid inside the heat-sensitive glass tube will exceed the tube's endurance limit, leading to the tube's rupture and thus activating the system.
After the system starts up, the pressurized water in the pipe network is forced to spray out from the nozzles and collide with the splash pan at high speed. The water flow is dispersed into fine and uniform water droplets, forming a complete water curtain that covers the designated protected area, thereby achieving efficient fire control and suppression.
Product Features
• High stability and strong anti-misoperation ability
• The technology is mature and highly reliable
• It has good economic performance and low maintenance costs
Product Parameter
| Model | TY4151 / TY4251 |
| Diameter Size | 1/2" 3/4" |
| Installation Type | Pendent，Uright |
