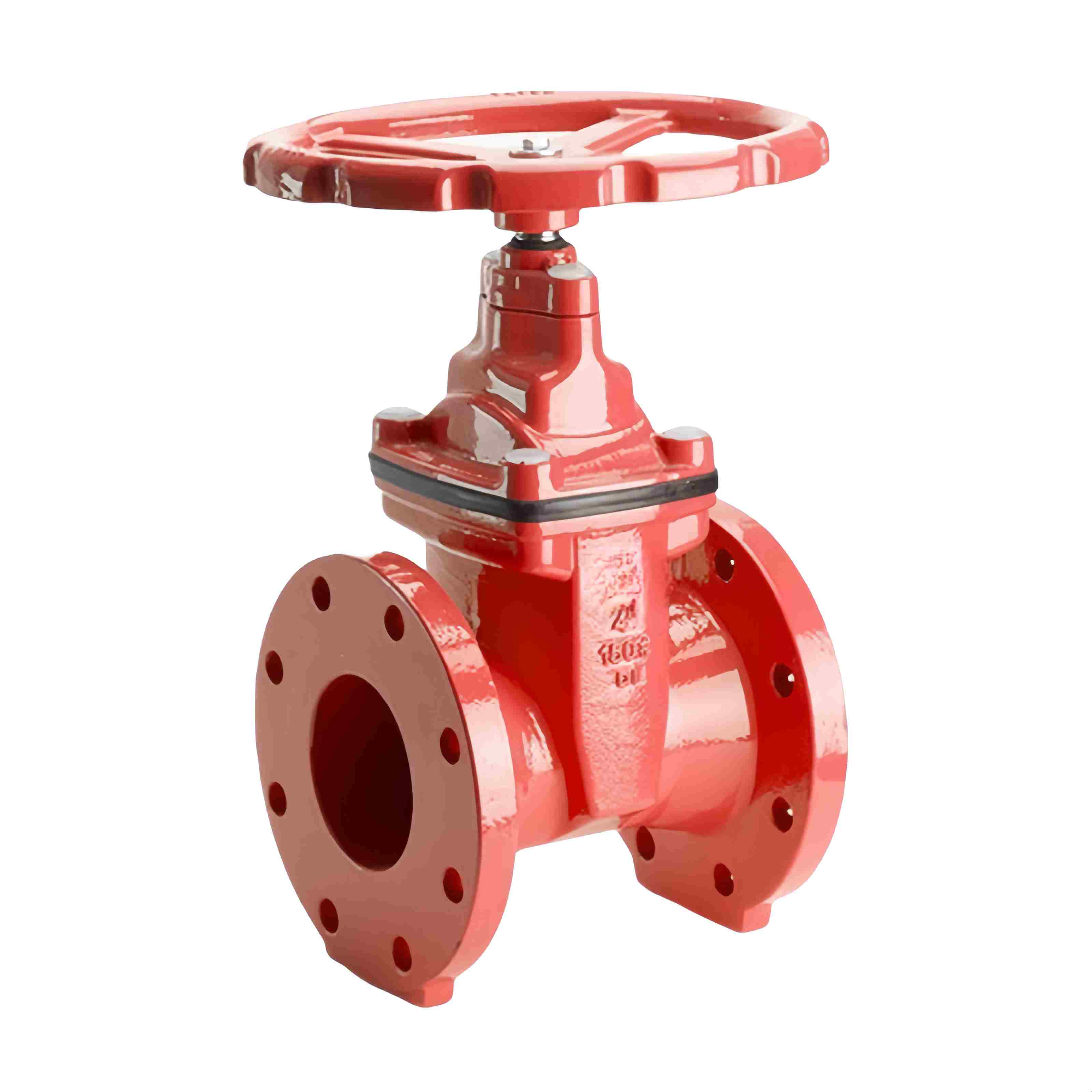

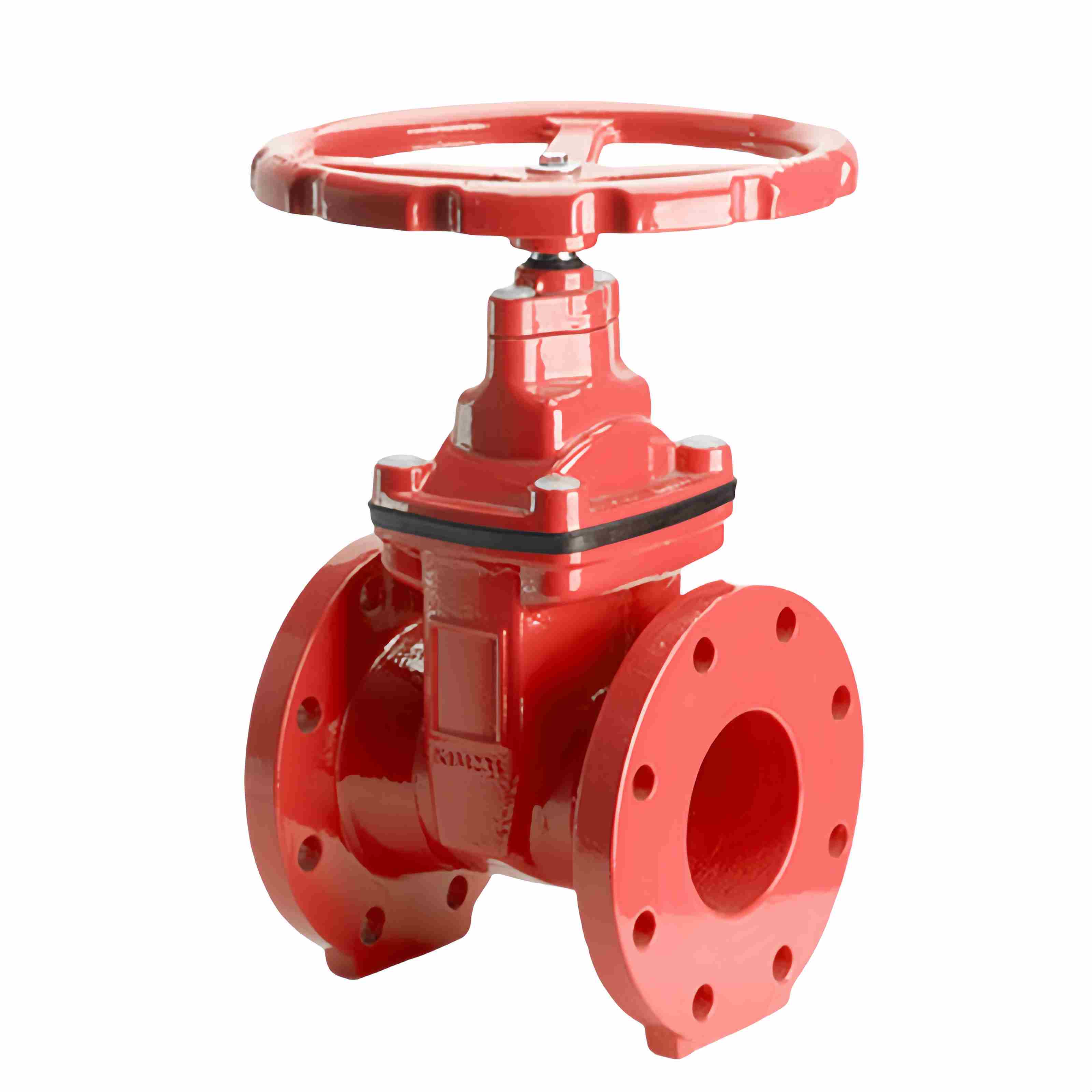

It is a type of gate valve that is connected to the pipeline through a flange, and its valve stem only rotates during opening and closing without axial lifting.
材料 :
Ductile Iron正常直径 :
DN50 to DN300联系 :
Flange End工作压力 :
PN10 PN16 PN25类型 :
Gate Valve应用 :
Fire Sprinkelr System etc最小起订量 :
20 Sets交货时间 :
15~45 Days电子邮件 : jony@jyfire.com.cn
Product Description
When the handwheel is turned, the valve stem rotates accordingly, but it does not move up or down. The thread at the bottom of the valve stem meshes with the thread inside the gate plate (wedge or parallel type) (valve stem nut). The rotational motion is converted into the linear motion of the gate plate through the threaded pair, causing it to rise and fall perpendicular to the fluid direction, thereby achieving the opening and closing of the pipeline.
Features
• Space Saving: Small height dimension, low requirements for installation space.
• No Visual Position Indicator: This is the major disadvantage. Unlike an OS&Y (Outside Stem & Yoke) valve, where you can tell at a glance if it's open or closed by the position of the stem, an NRS valve provides no external visual cue. You cannot tell its status just by looking at it.
• Stem Threads are Inside the Valve Body: The threaded part of the stem is inside the valve and in contact with the pipeline fluid. If the fluid is corrosive or contains debris, the threads can wear or corrode over time, potentially leading to failure.
Product Parameter
| Technical Data | |
| Size | DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN250-DN300 |
| Body Material | Ductile Iron |
| Working Pressure | PN10 PN16 PN25 |
| Temperature Range | 0℃~80℃ |
| Standard | UL |
FAQ
Q：What’s the MOQ for UL Flanged Non Rising Stem Gate Valve?
A：For standard sizes, our MOQ is usually 20 Sets . For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：Can OEM services be provided? For example, putting on our brand Logo?
A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
Q：Why choose us？
A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
