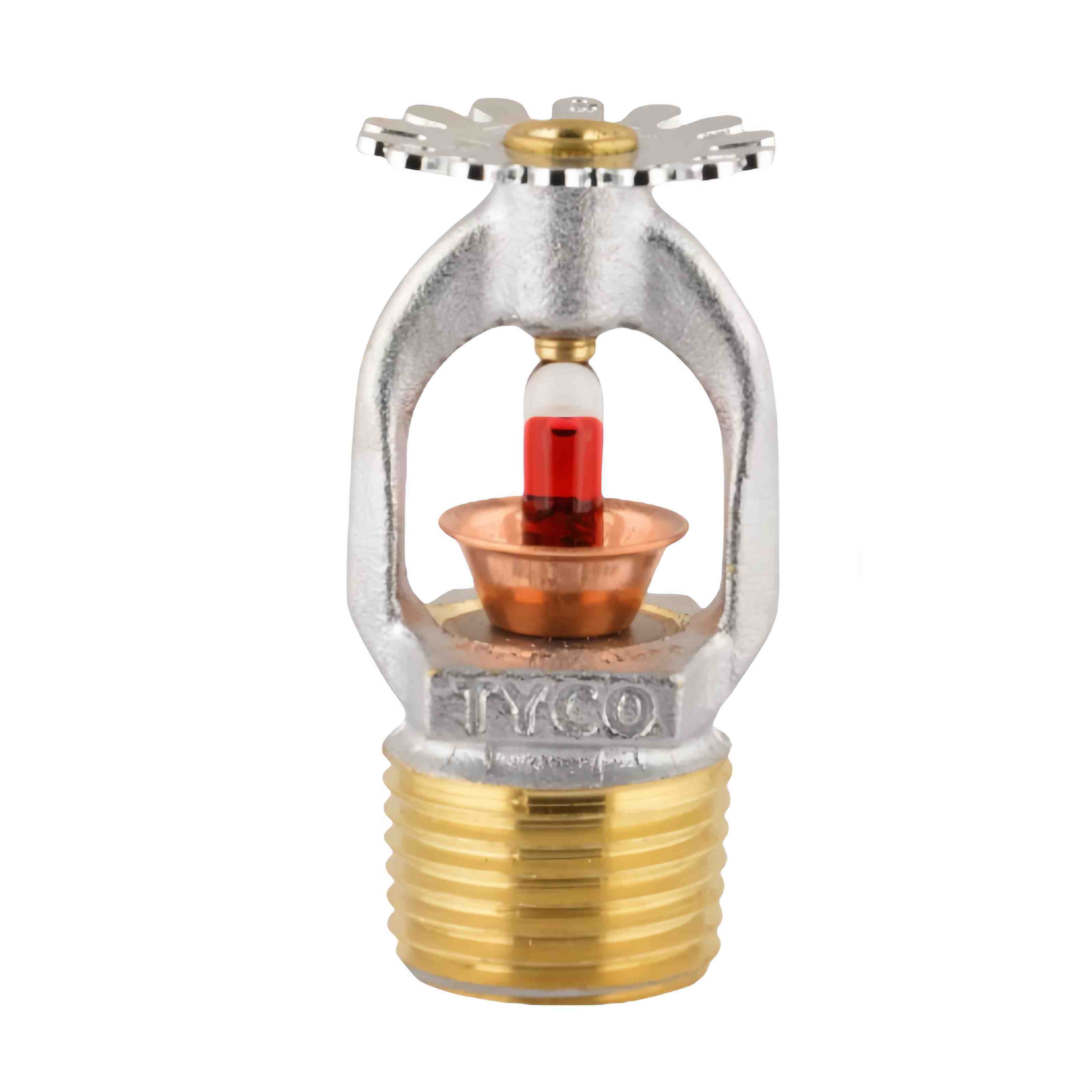

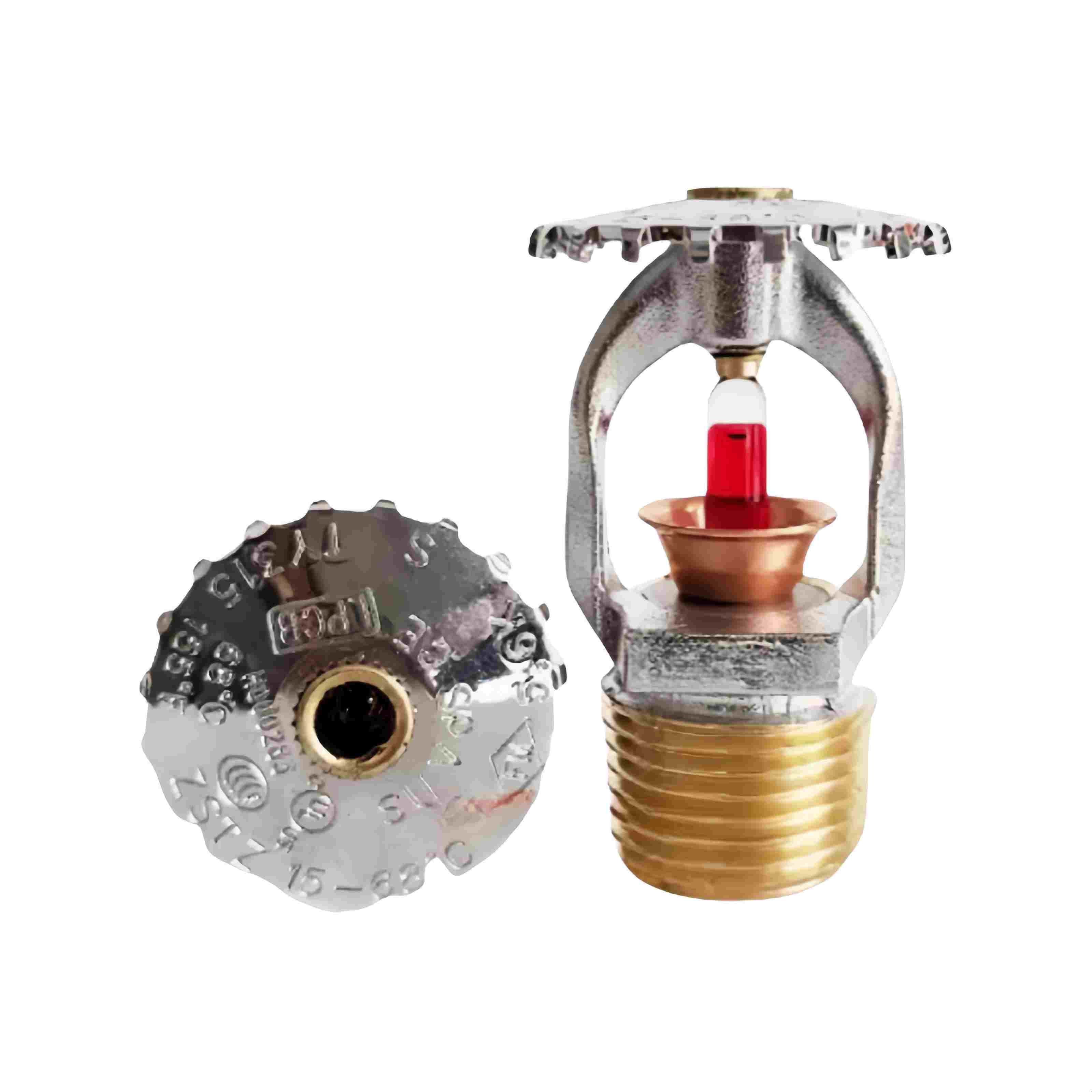

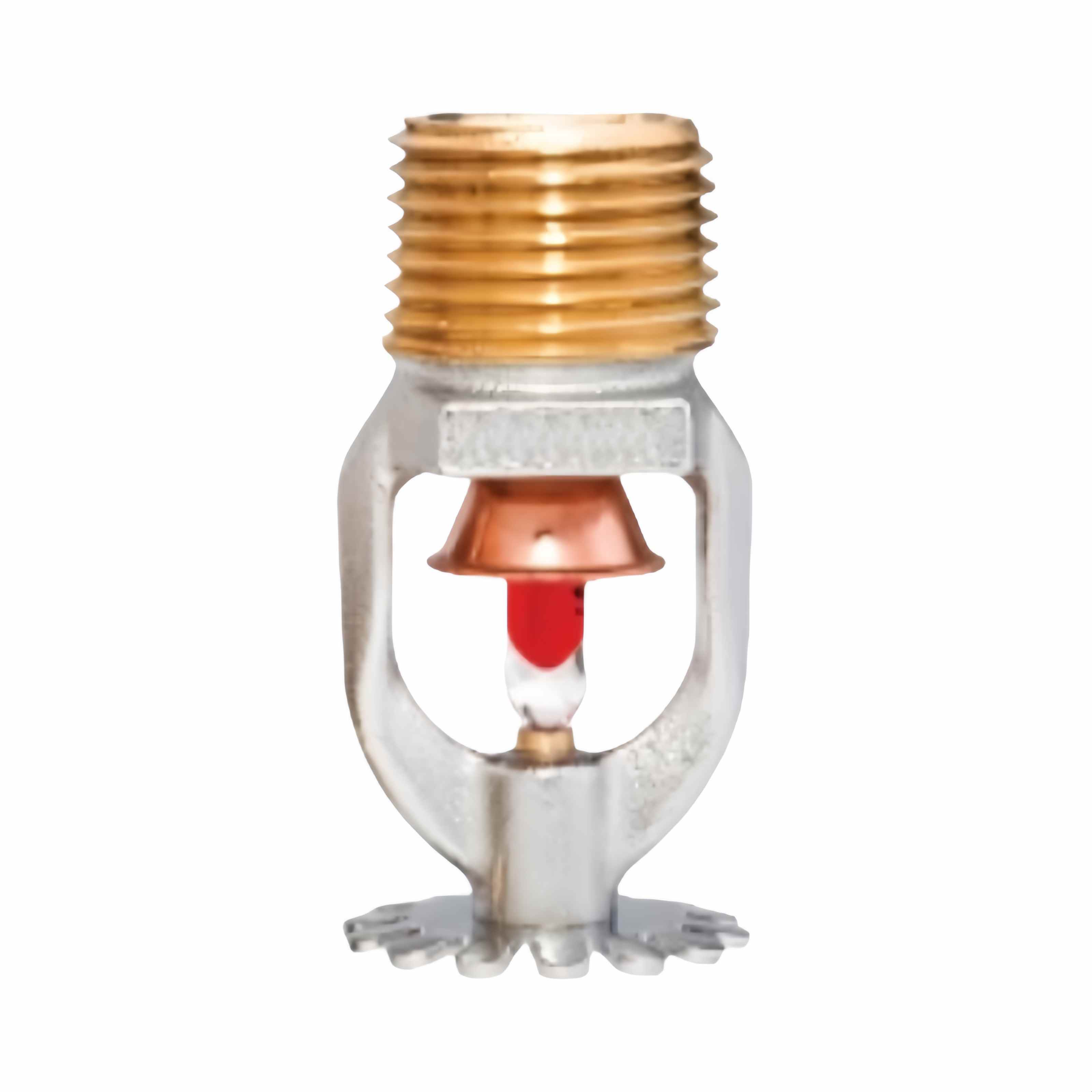

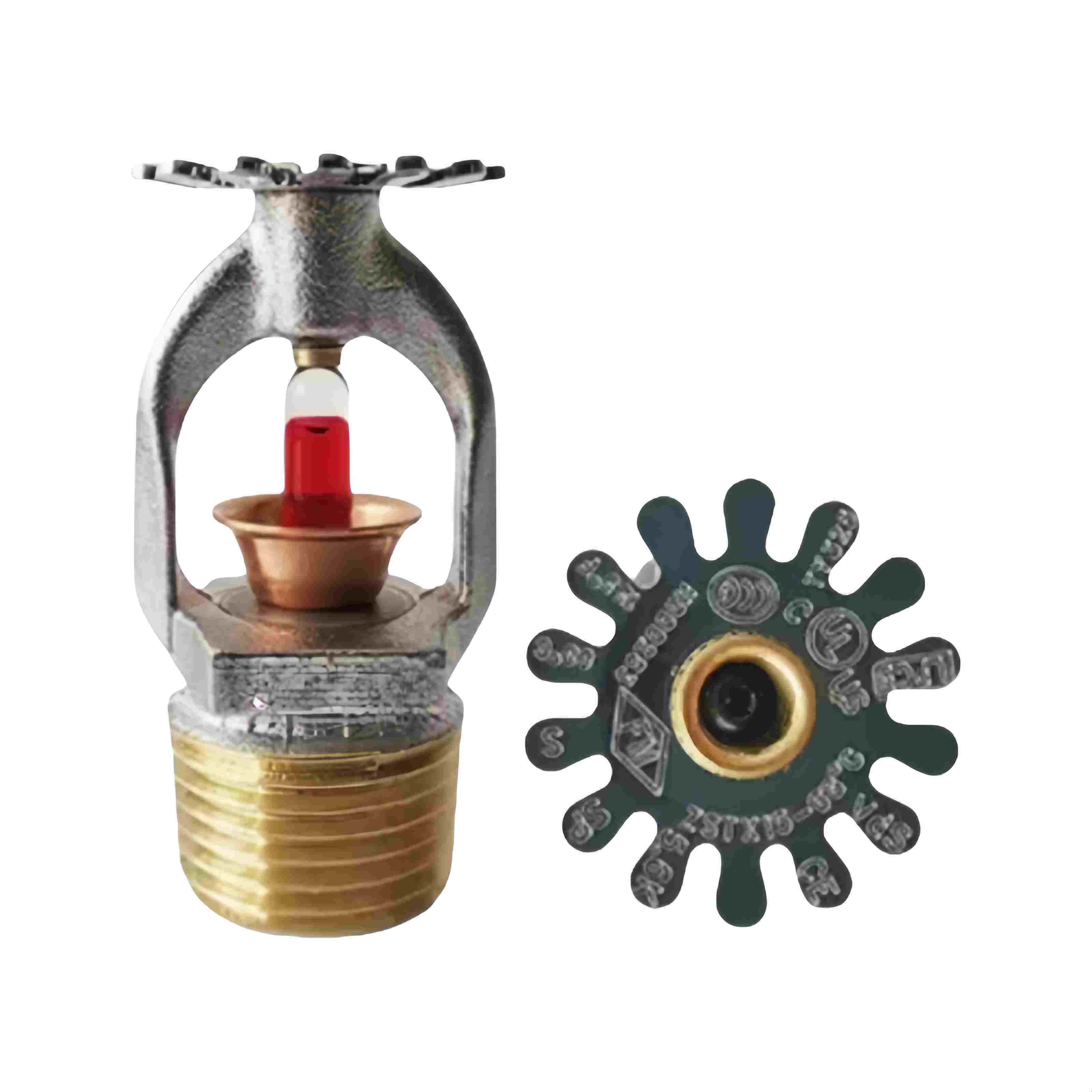

UL Standard Fire Sprinkler Head is a crucial component of a fire protection system, designed to automatically control or extinguish a fire by discharging water directly onto the source once a specific temperature is reached.
喷头材质 :
Brass洒水装置安装 :
Pendent,Uright,Sidewall螺纹尺寸 :
1/2 Inch温度 :
135℉,155℉,175℉,200℉,286℉,360℉玻璃灯泡颜色 :
Orange,Red,Yellow,Green,Blue表面处理 :
Natural Brass最小起订量 :
1000 Pieces交货时间 :
15~30 Days电子邮件 : jony@jyfire.com.cn
Product Description
UL fire sprinkler heads sense the ambient temperature through thermal sensitive elements. When the preset operating temperature is reached, they automatically break or melt, thereby releasing the water flow. The water flow is evenly and effectively distributed to the surface of the burning object by the deflector. The entire process is purely mechanical and automated, requiring no external power supply or manual intervention.
The fire sprinklers are activated one by one. Only the nozzles (or those few) that have reached their rated temperature will operate. This avoids unnecessary water stain loss and insufficient water source pressure caused by all nozzles spraying water simultaneously. The nozzle is only sensitive to heat and has no response to smoke. It won't start just because someone smokes.
Features
• Fully automated operation
• Reliable thermal drive
• Highly efficient water spraying and distribution performance
• Quick response ability
• Economical and efficient fire extinguishing efficiency
Product Parameter
| Installation Type | Pendent.Uright,Sidewall |
| Pipe Thread Connection | 1/2 inch NPT (DN15) |
| K Factor | K5.6 |
| Max. Working Pressure | 175 psi |
| Temperature Range | 135℉,155℉,175℉,200℉,286℉,360℉ |
| Finish | Natural Brass |
FAQ
Q：What’s the MOQ for ul fire sprinkler?
A：For standard sizes, our MOQ is usually 1000 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
Q：What is the delivery time?
A：The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
